Job 0362Repairs

Sashes on Wharf Terrace

Eleven canal-side sash windows, spliced and re-corded instead of replaced.

Where
Canal-side terrace, Wharf Terrace
Fitted
March 2025
Timber
Original pine, spliced with Accoya
Finish
Linseed oil paint, three coats
On the bench
4 weeks
A restored white six-over-six sash window in an old red brick wall, the canal and the houses opposite reflected in its panes, a stone sill below

Same frames, new cords

The owners of Wharf Terrace had a quote for plastic windows and asked us for a second opinion. Ten of the eleven sashes were sound apart from the bottom rails, which had sat in rainwater for a hundred years.

We took the sashes out one floor at a time, so the house was never open for more than a day. In the workshop we cut back the rot, spliced in Accoya (it doesn’t rot) and painted them with linseed oil paint, which moves with the wood instead of cracking.

Back in

New cotton cords, the pulleys freed and oiled, the weights balanced so every sash stays where you leave it, and brush seals in new beads. The windows are quieter than the plastic ones would have been, and they’ll outlast them.

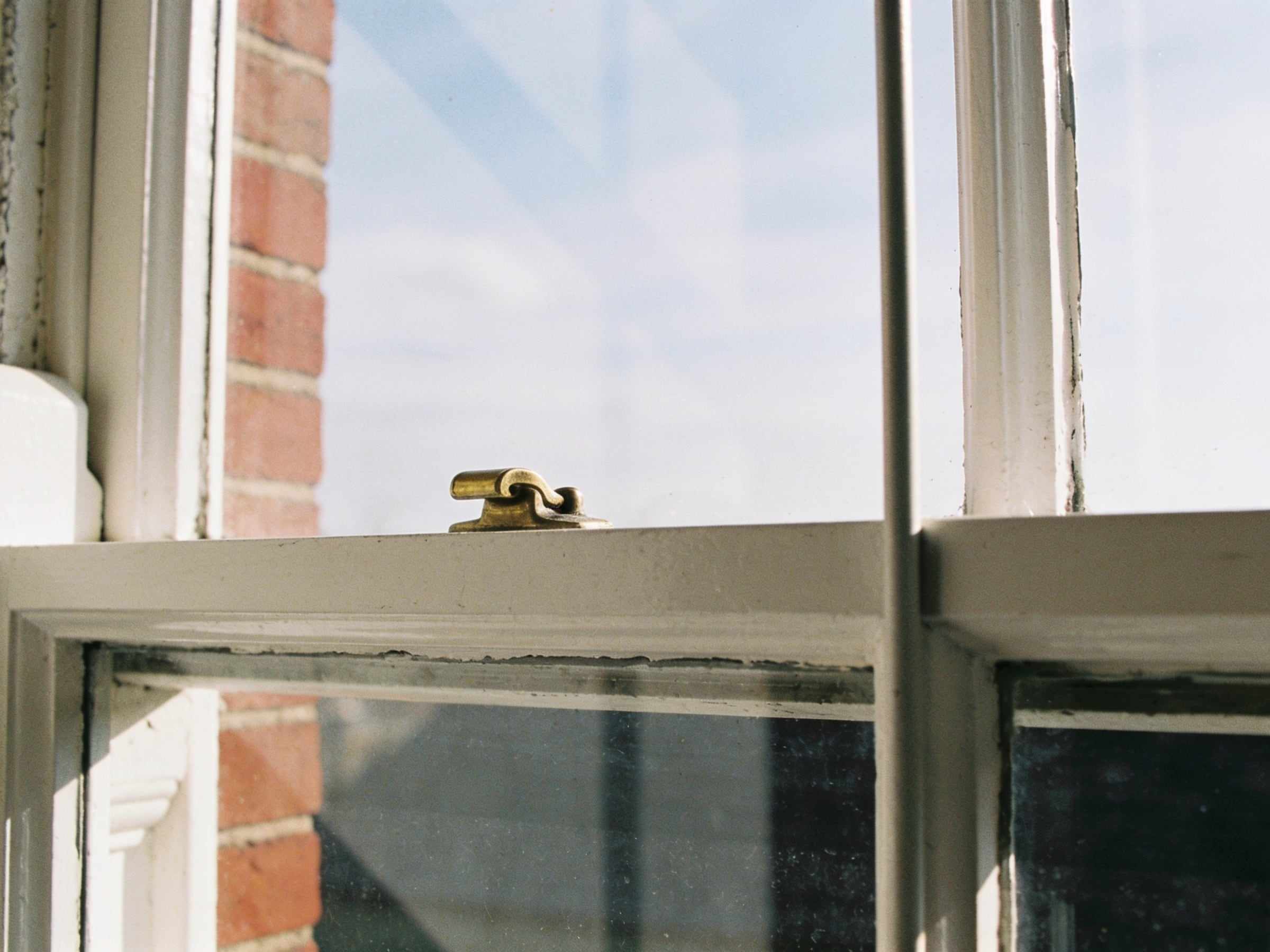

Close-up of a small brass fastener on the meeting rail of a white painted sash window, the sky reflected in the glass and red brick at the edge
Fig. 2The old brass fasteners, cleaned and put back

Cut list

PartSize (mm)Qty
Bottom rail splice790 × 70 × 459
Sill splice980 × 140 × 704
Staff bead1 650 × 20 × 1544
